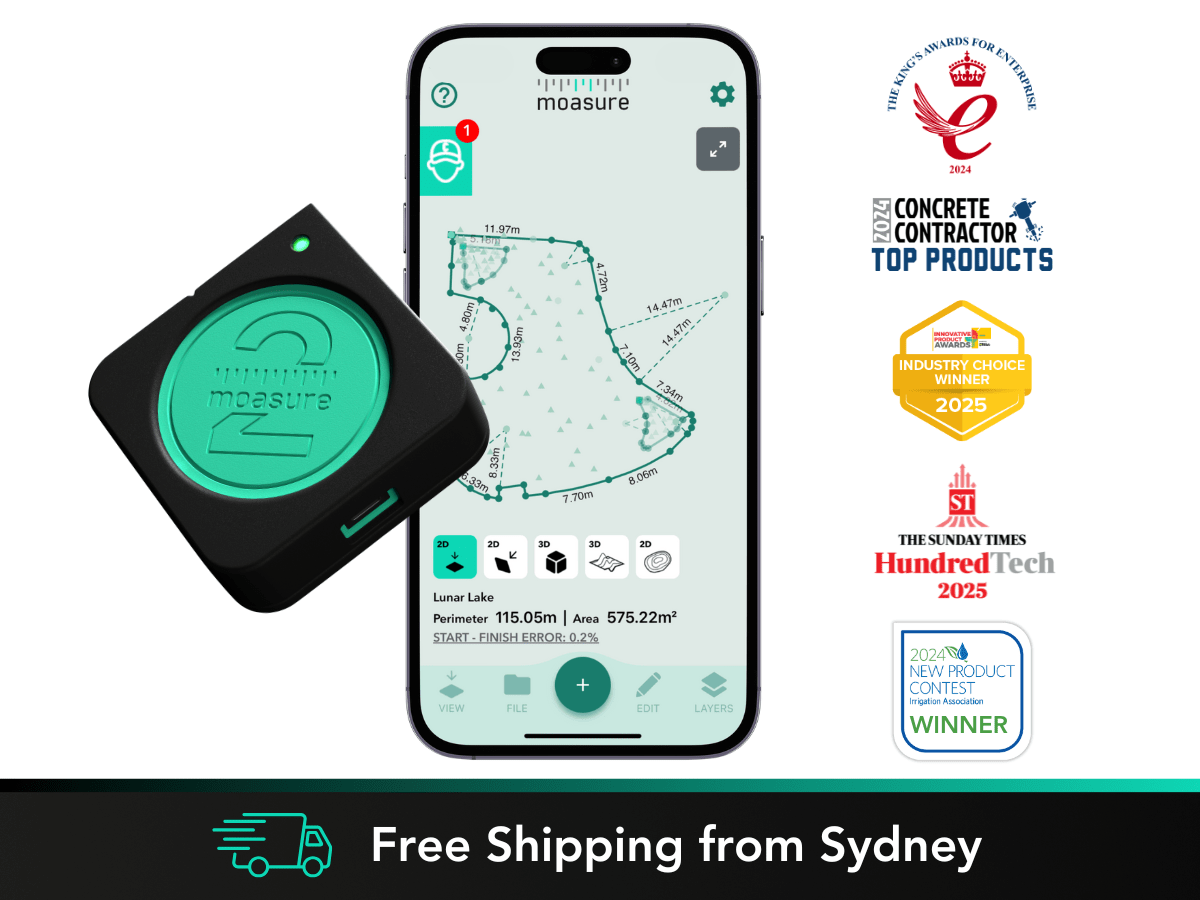

Moasure® 2

Moasure® 2

90,000+ Moasure Devices Sold Worldwide

Regular price $1,049.00 excl. GST
Regular price Sale price $1,049.00
Sale Sold out

No monthly fees

Up to 99.5% accuracy

Measure & draw irregular job sites

Calculate area, volume & elevation

Export to PDF, CAD or CSV

Layout mode (Moasure 2 PRO only)

Try Risk-Free with our 60-Day Money-Back Guarantee

Payment Icons View full details

Description

Simultaneously measure and draw complex and irregular job sites with Moasure 2, the next evolution in motion-based measurement technology. Capturing x, y, and z data as it moves from one point to another, Moasure automatically calculates perimeter, area, elevation, volume, and more.

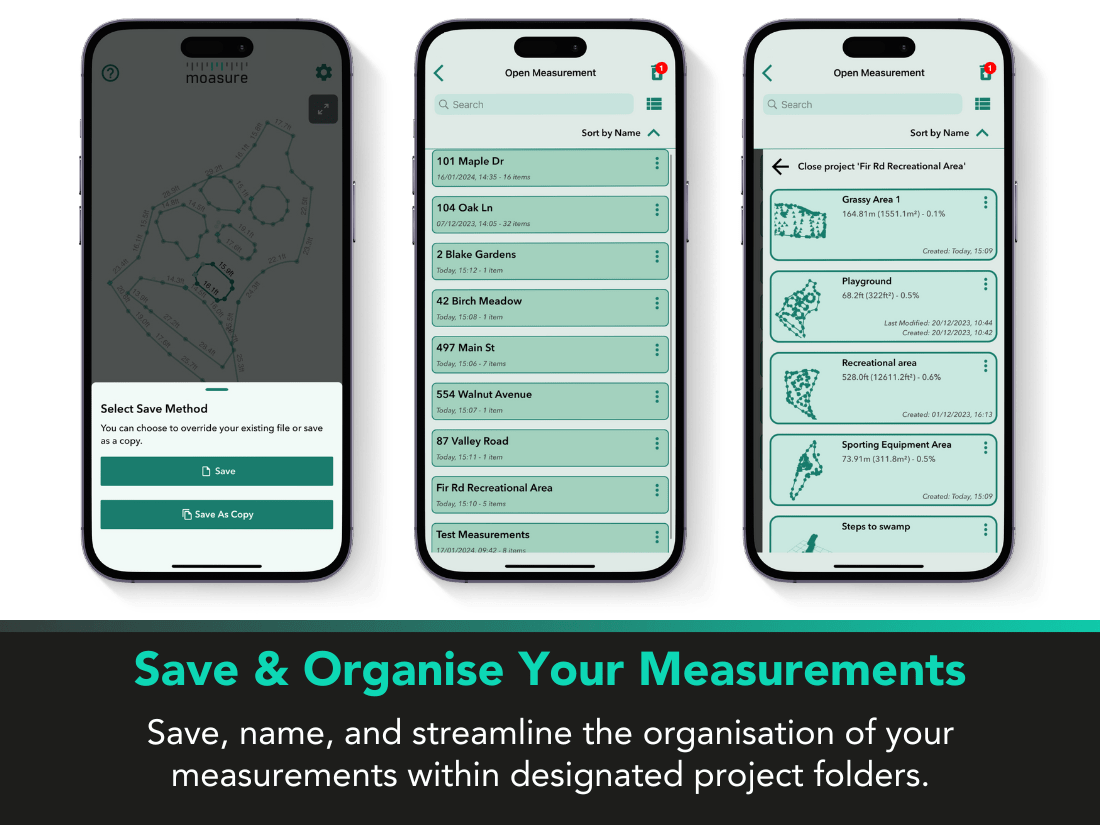

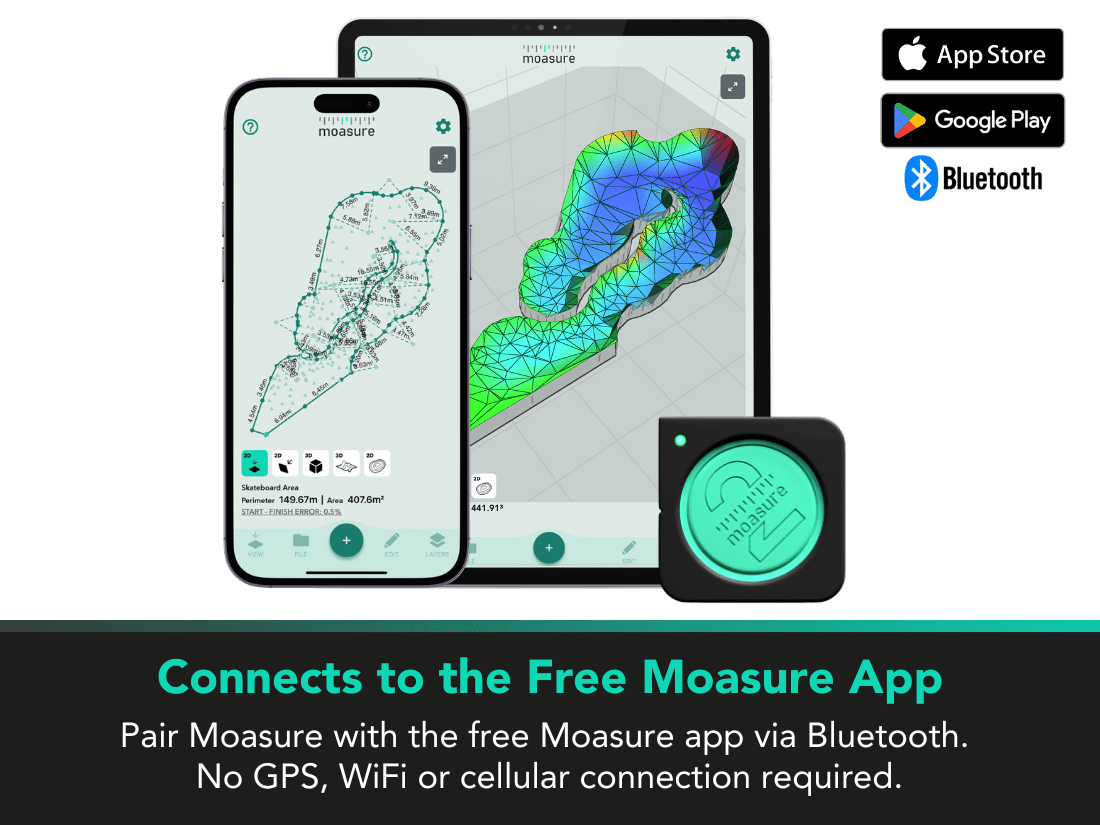

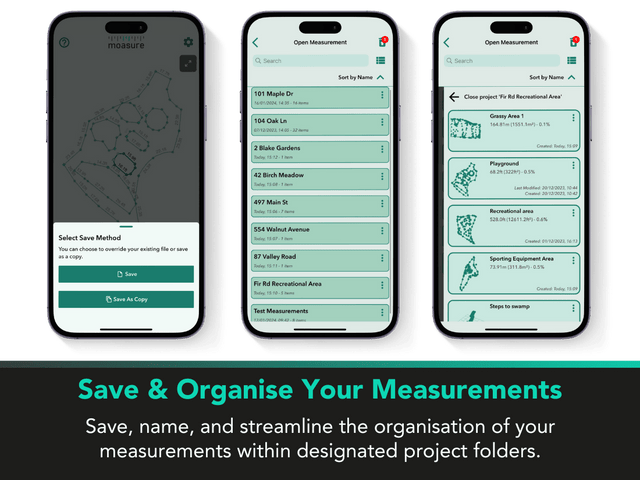

Moasure 2 connects to the free Moasure app via Bluetooth, instantly transforming your measurements into dynamic visuals. View, edit, and save your measurements or export them as a PDF or directly to your CAD software at no additional cost.

Accuracy

Linear Distance: ± 0.5% error (99.5% accurate)

Perimeter: ± 1% error (99% accurate)

Elevation: ± 0.5% error (99.5% accurate)

Area: ± 2% error (98% accurate)

Volume: ± 3% error (97% accurate)

Layout: ± N/A (Moasure 2 PRO exclusive)

Technical Specification

Moasure requires your smartphone or tablet to have at least Bluetooth 5.0 and is compatible with most devices that have the following operating systems: Apple iOS 13 and higher, Android OS 9.0 and higher.

Operating Temp: -10C to +50C (14F to 122F)
Storage Temp: -20C to +70C (-4F to 158F)
Shock: Survives 2m drop on to concrete
Sealing: Sealed to IP67 - water-resistant
Certification: CE certified
Battery Type: Lithium polymer
Battery Life: 5 hours' continuous measuring
Recharge Method: Via USB-C (cable supplied)
Recharge time: 2-3 hours

Shipping

We offer multiple shipping options.

See exact shipping times and cost at checkout.

Warranty & Returns

Moasure devices are built to be durable and long lasting, but in addition to our 60-day free trial, every Moasure device comes with a two-year warranty.

This is valid from the date of the original retail purchase and covers your hardware product and accessories against defects in materials and workmanship.

What's in the box

Everything you receive with your Moasure® 2

What's in the box

Everything you receive with your Moasure® 2

Difficult measuring made easy

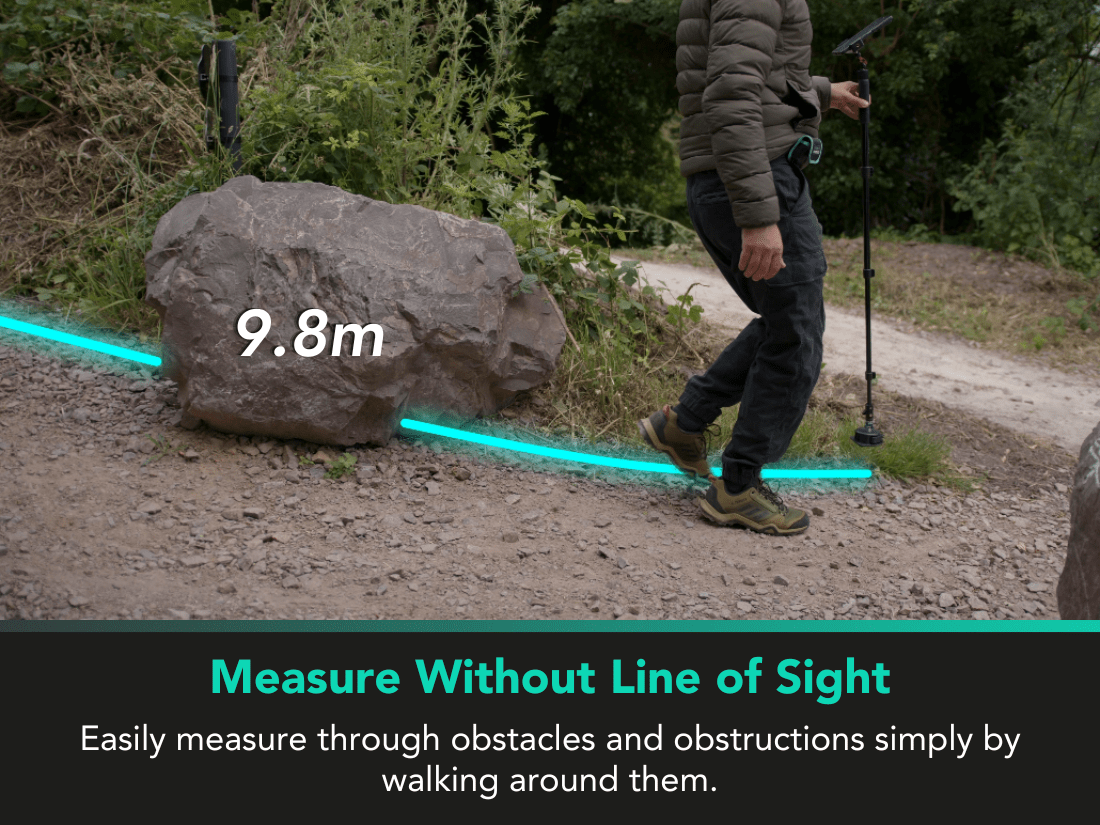

Moasure makes measuring complex shapes a breeze. No GPS, data or line of sight required.

Generate accurate dimensioned drawings while you move.

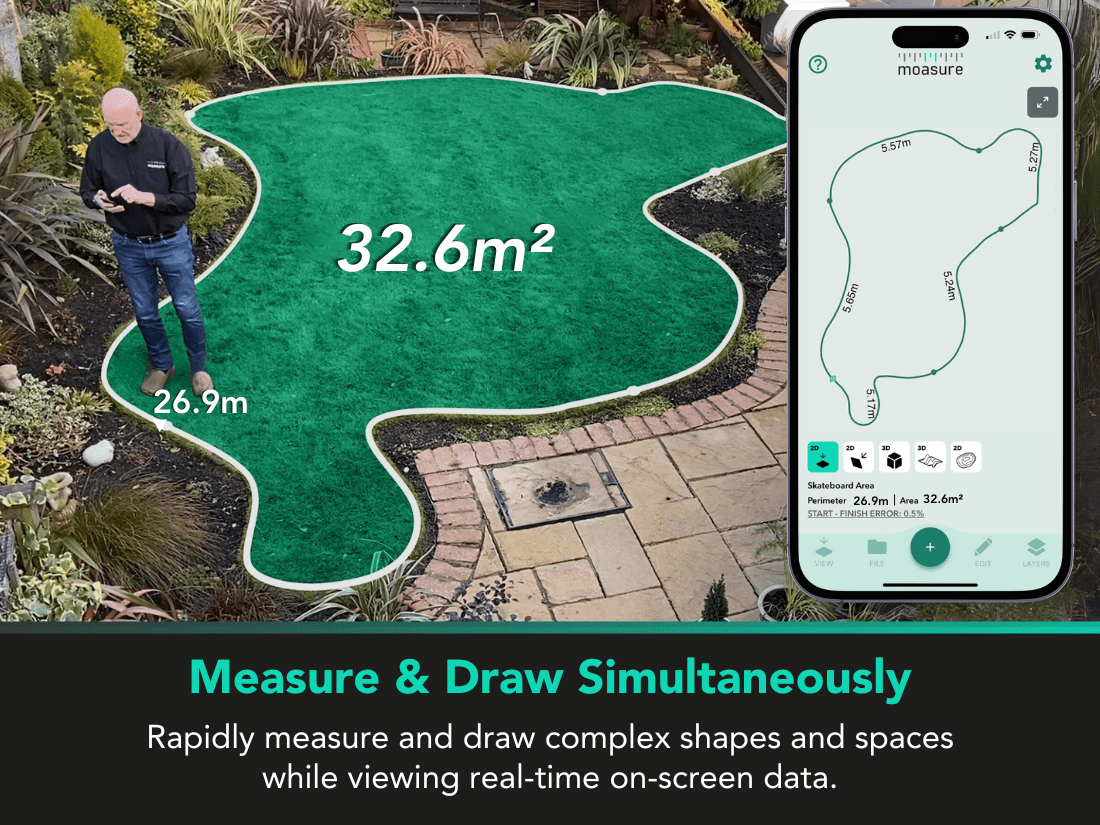

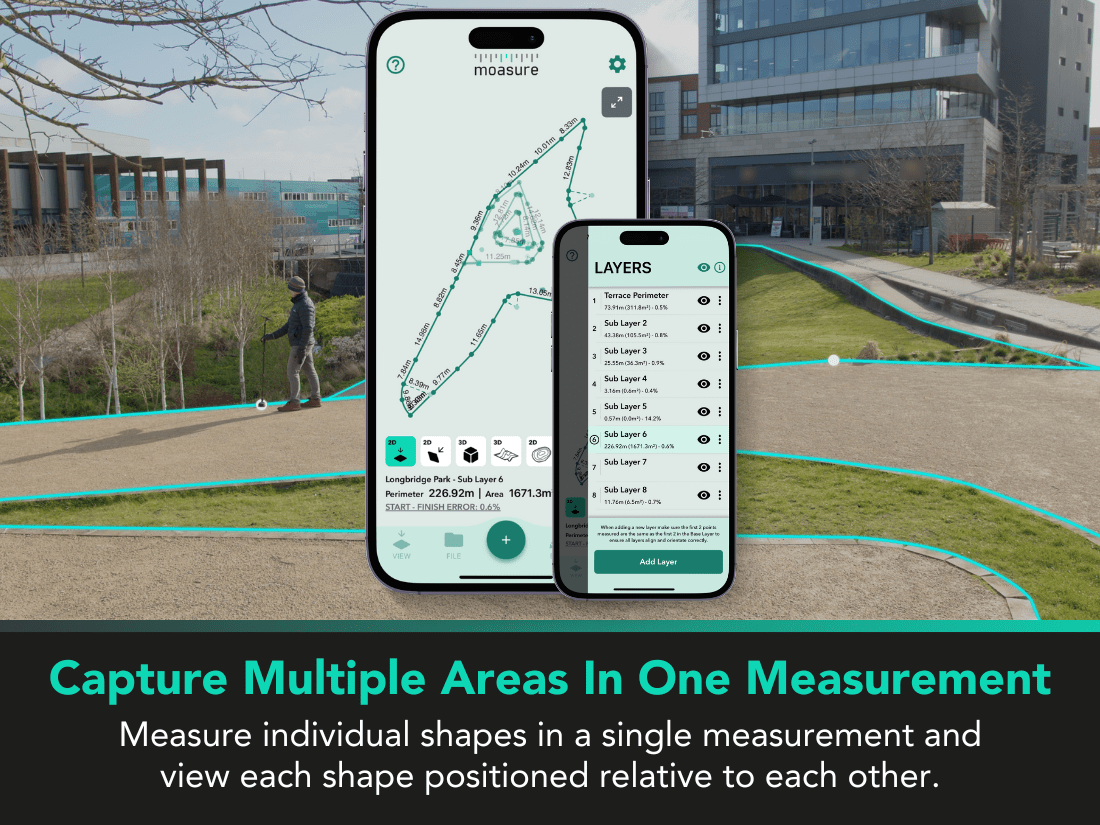

Effortlessly measure and draw complex areas simultaneously. Simply trace along the edges of an area using your Moasure device to digitally capture the shape and dimensions. Add multiple layers within one measurement to simplify your workflow.

Automatically calculate the square footage and perimeter of a measured area.

Simply measure the perimeter of curved lawns, pools and other irregular spaces with your Moasure device and the perimeter and area will be automatically displayed in your Moasure app.

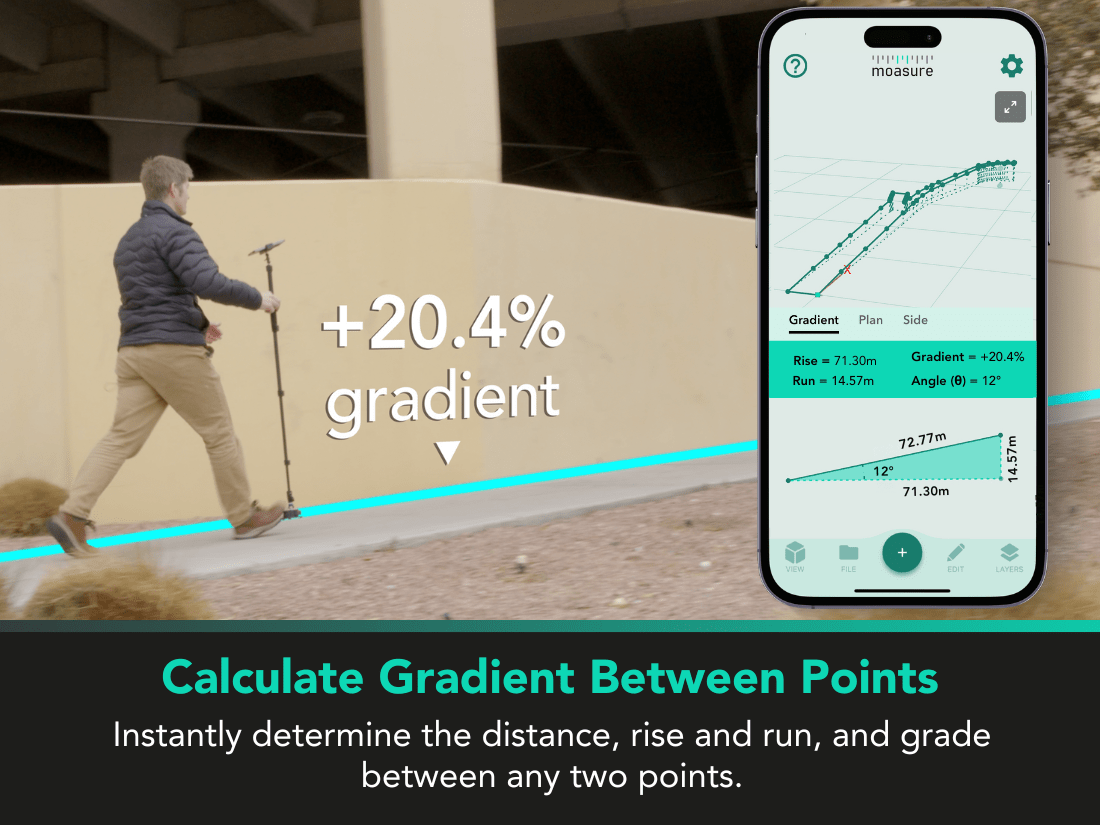

Measure elevation, determine grade, calculate rise & run.

From measuring complex shapes like sloped lawns or steps, to calculating rise and run or assisting with topographical and flood surveys – difficult measuring is made easy with Moasure.

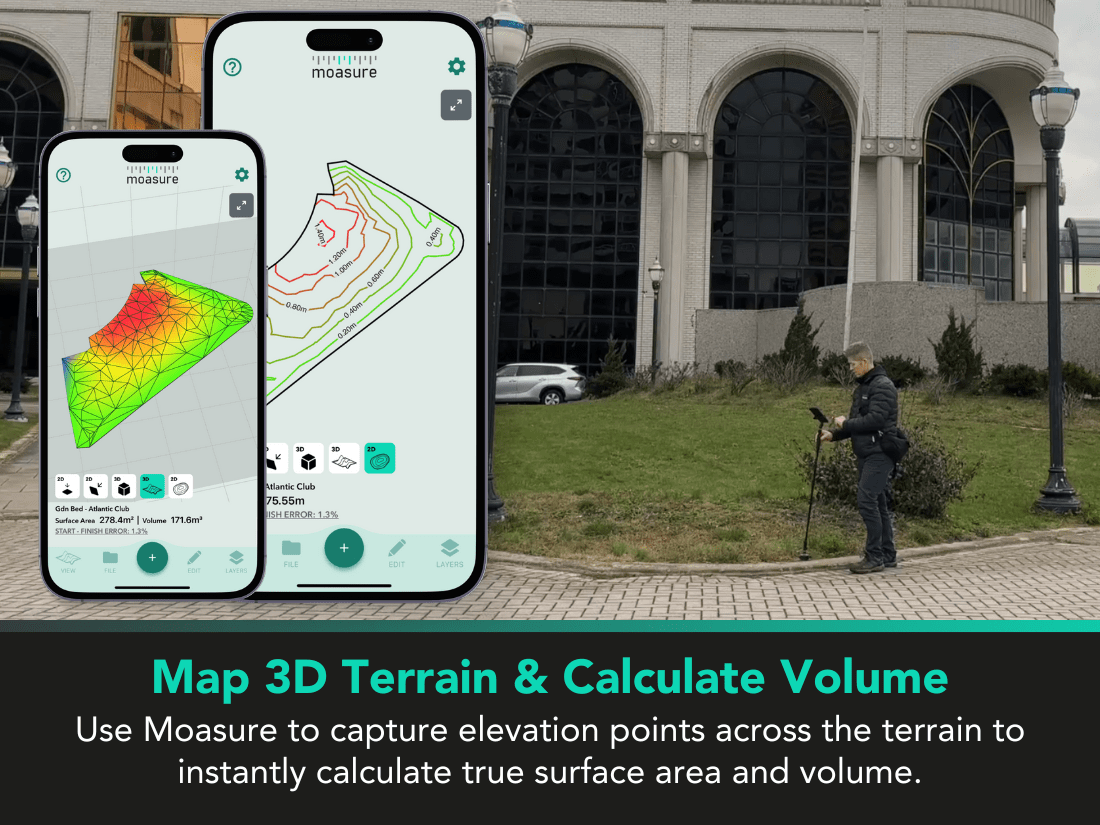

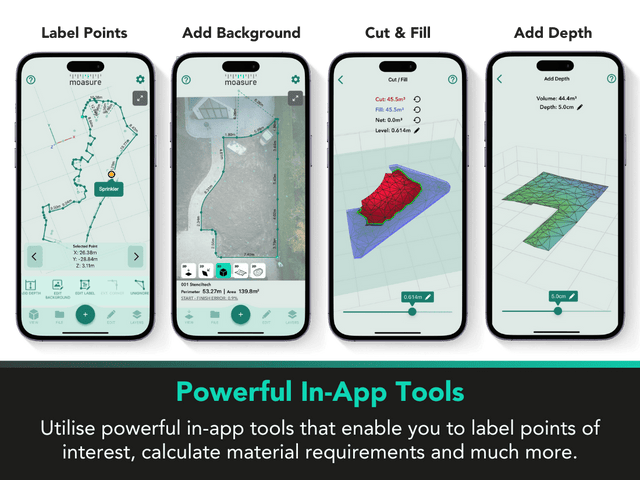

Generate 3D terrain maps, calculate true surface area, volume, and contour lines.

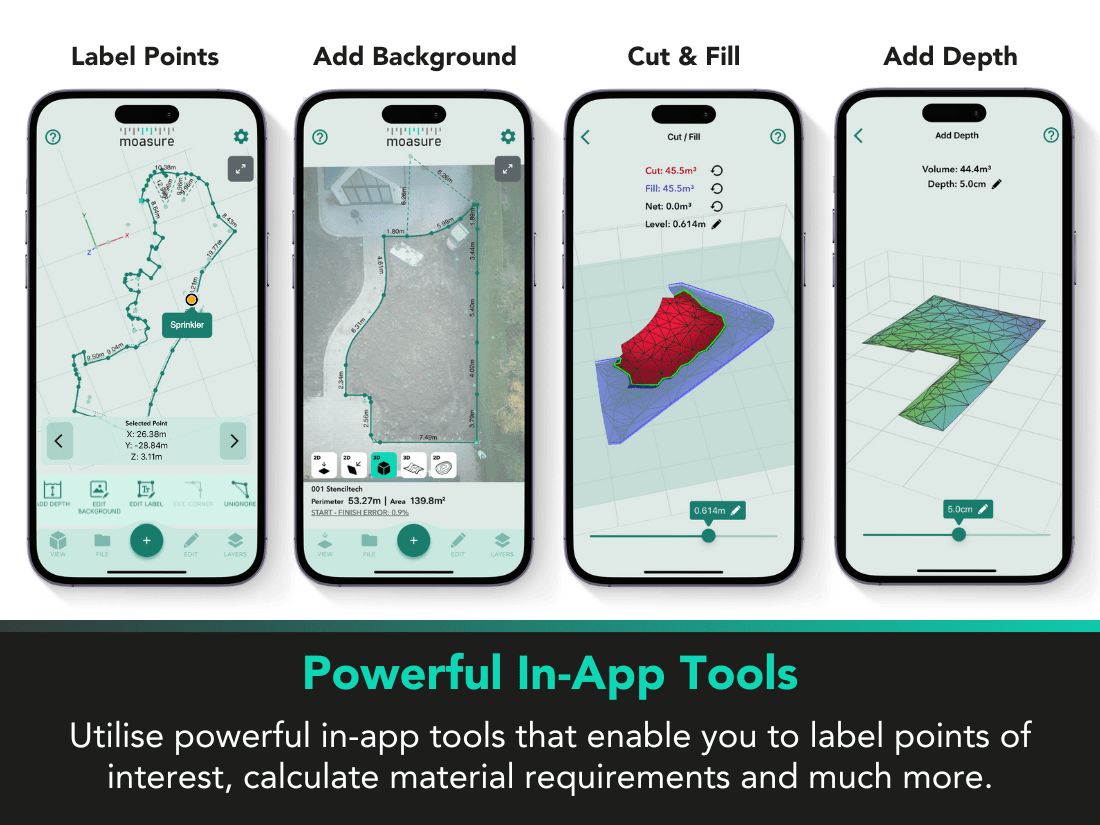

You can also effortlessly calculate the Cut & Fill, making earthwork projects more efficient and profitable. Whilst the ‘Add Depth’ tool allows you to add custom depth and calculate the required volume of material for a site.

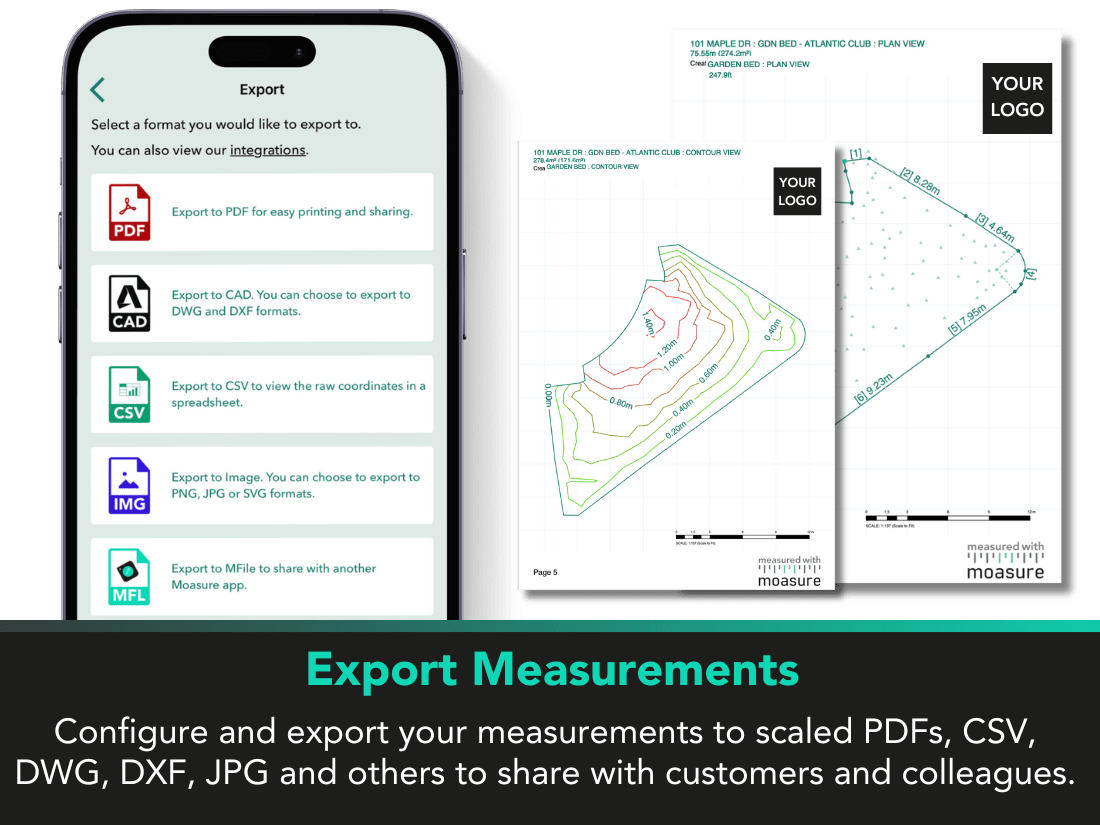

Share measurements with clients, colleagues or your favourite design software.

Generate detailed, scaled PDFs, export to DXF or DWG for CAD applications, manipulate data with CSV exports, or visualise measurements using PNG, JPG and SVG formats.

Professionals measure the Moasure way

Tens of thousands of people have already made the switch to Moasure.

Customer Reviews

Based on 1141 reviews
83%
(951)
10%
(112)
3%
(36)
1%
(14)
2%
(28)
A
Adam Barton
HIGHLY RECCOMMEND!!!

As a company dedicated to creating safe, engaging, and well-designed playgrounds, we’re always on the lookout for tools that enhance our efficiency and precision. Moasure has been a game-changer for our team, bringing accuracy and ease to our entire measurement process, whether it's mapping out a new play area, marking safety zones, or installing equipment. Moasure has redefined our approach to playground layout and installation. The device's ease of use, accuracy, and adaptability have had a profound impact on our projects, improving not only our efficiency but also our confidence in delivering playgrounds that are safe, accessible, and creatively designed. If you’re in the playground industry or any field that requires versatile, high-precision measurements, Moasure is a must-have. It’s not just a tool; it’s an investment in quality, safety, and innovation.

L
Landpride Lot Service
Which Moasure Device did you purchase?: Moasure 2 PRO
Choose the industry that best matches your line of work: Landscaping
Tell us how long you've been using Moasure: 1-3 months
Time is Money!

I recently purchased the Moasure 2 PRO. I'm still learning how to use it, but I'm finding it to be a very useful tool. The Cut/Fill feature is absolutely priceless! In the past, I would use my DeWalt rotary laser and graphing paper to plot out all of the elevation points, then sit down for about an hour and do the math. Or let's face it, just end up giving it an educated guess. Now, with the Moasure, I can quickly and accurately calculate the cut and fill for a site.

Judge.me YouTube video placeholder
A
A.M.
Moasure 2 PRO is a Game Changer!!!

I purchased the moasure 2 PRO to help with pre contract site inspections for a shed builder. I am a design expert and project manager in one.
The Moasure 2 PRO has helped gain valuable site data, much quicker than using old school lasers.
The more I use it, the more I am learning.

G
G.D.s.
Which Moasure Device did you purchase?: Moasure ONE
Choose the industry that best matches your line of work: Excavation
Tell us how long you've been using Moasure: 6+ months
Amazing!

This equipment is fantastic with great vertical accuracy. I wish the software team would add the terrain profile option with all the points collected like in the attached photo.
Thank you Moasure team.

k
k.d.
Which Moasure Device did you purchase?: Moasure ONE
Choose the industry that best matches your line of work: Construction
Tell us how long you've been using Moasure: 1-3 months
construction of trails/roads on rough steepish terrain

it's an interesting and potentially useful device for small landowners who may be dealing with fire protection issues and outdoor trail and road construction..
i'm still learning, rewatching videos, but i'm starting to get some useful measurements with intermittent spotty efforts over last several weeks.
i realized i needed to do some smoothing/brush clearing to measure effectively, so that has delayed progress. i'd still like more auditory feedback on what device is doing.
today i figured out how to switch modes to add points within a volume.
but cut/fill on my trail is still challenging me.
i have volume estimate of 200 cu yds + to bring bottom up to reduce grade. but i'm going to need to cut the top as well to get to reasonable grade. perhaps i need the net 0 cut/fill,
or perhaps i'm not choosing right starting point.
we've roughed out the trail by eye and smoothed. so i'm going to try again more carefully. by walking up grade, stepping over to other side and walking down the grade and stepping over to starting point....

Moasure integrates straight into your existing workflow

Frequently asked questions

Are there any ongoing costs or subscription fees?

No, there are no ongoing costs or subscription fees.

Previously, exporting measurements was subject to a small monthly fee. However, following Moasure customer feedback, this monthly fee was removed.

The Moasure app, used in conjunction with the Moasure device, is completely free and this includes future updates and new features.

How can I try Moasure® 2?

There's no better way to try Moasure than getting hands-on.

We're proud to offer a 60-day money back guarantee. This means that after you place an order, you have 60 days to try Moasure and see first-hand all of its features and benefits.

If you’re not satisfied – we’re not satisfied.

If you would like to return your Moasure, simply keep your original product packaging and accessories and ensure the device is in sellable condition (we know you have to use it). Contact us to and return the product within 60 days from purchase.

Learn more about our returns policy here.

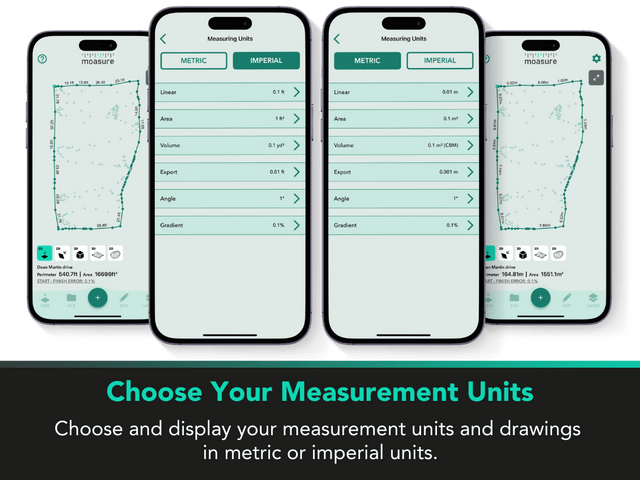

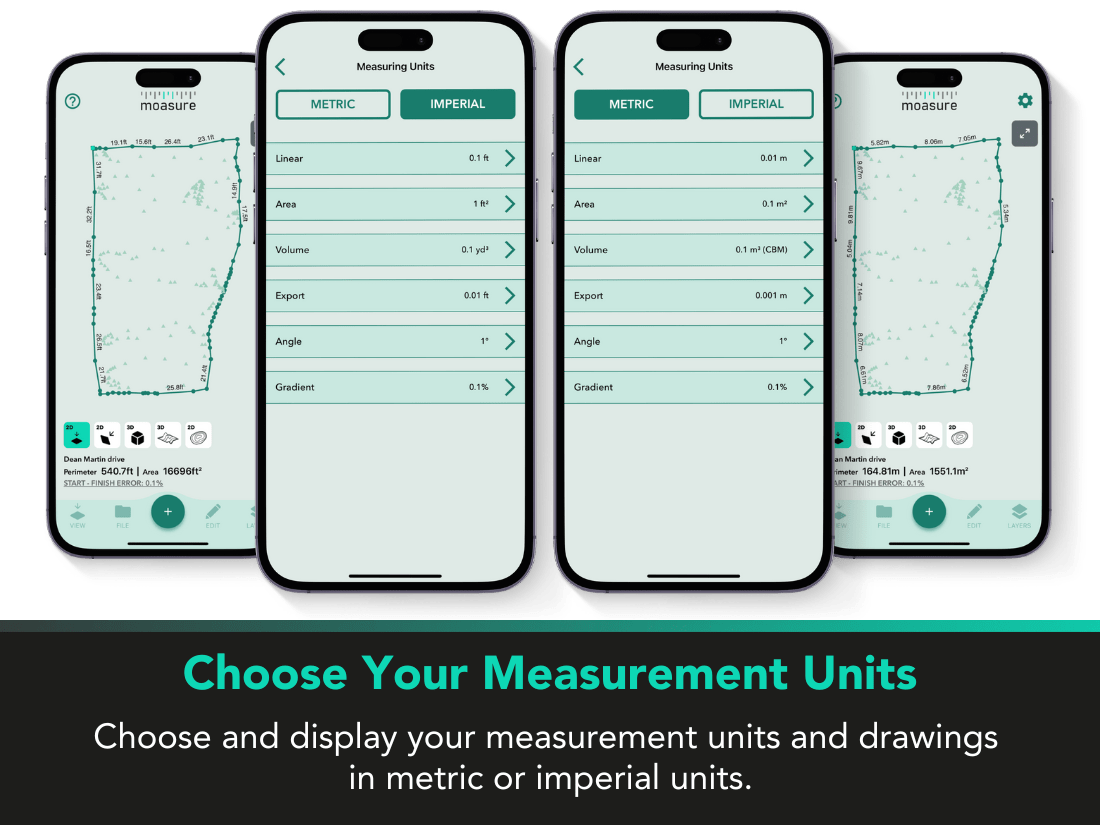

Can I measure in both metres and feet?

Yes, you can choose to display measurements in either metric or imperial units from within the Moasure smartphone/tablet app.

Can I export my measurement data and drawings?

You can save even more time designing or quoting jobs and projects by exporting your measurements - directly from Moasure's companion app, at no additional cost.

Export any of your measurements and drawings from the app in any of the following formats:

  • PDF – export 2D and 3D drawings and measurements
  • DXF & DWG – export 2D and 3D files (compatible with popular CAD programs like AutoCAD, SketchUp and Vectorworks)
  • PNG – export an image file of drawings and measurements
  • CSV – export coordinate data
  • SVG (Scalable Vector Graphic)

Orders, shipping & returns

What is your return policy?

If you’re not satisfied, we’re not satisfied.

If you would like to return your Moasure, simply keep your original product packaging and accessories, ensure the device is in sellable condition (we know you have to use it) and then get in touch with us to and return it to us within 60 days from purchase.

How do I contact Moasure?

Do you have a question, or want to say hello?

You can contact us by completing the form here, and our friendly team will respond as soon as possible.
